K-FORM HAS CREATED A REVOLUTION IN CONCRETE PLACING

Placing concrete has traditionally involved setting up a series of wooden boxes and then concrete is poured into alternate sections. After the concrete has dried, the boxing is dismantled and a new load of concrete goes into the sections missed the first time around – hence the name ‘hit and miss’ pouring.

While this method of pouring concrete is well-established and fairly straightforward, the process has always had drawbacks. A major issue is the amount of time it takes – because you’re being forced to sit through the drying process before you can pour again. Cutting control joints into the concrete with a diamond saw adds more time on top this.

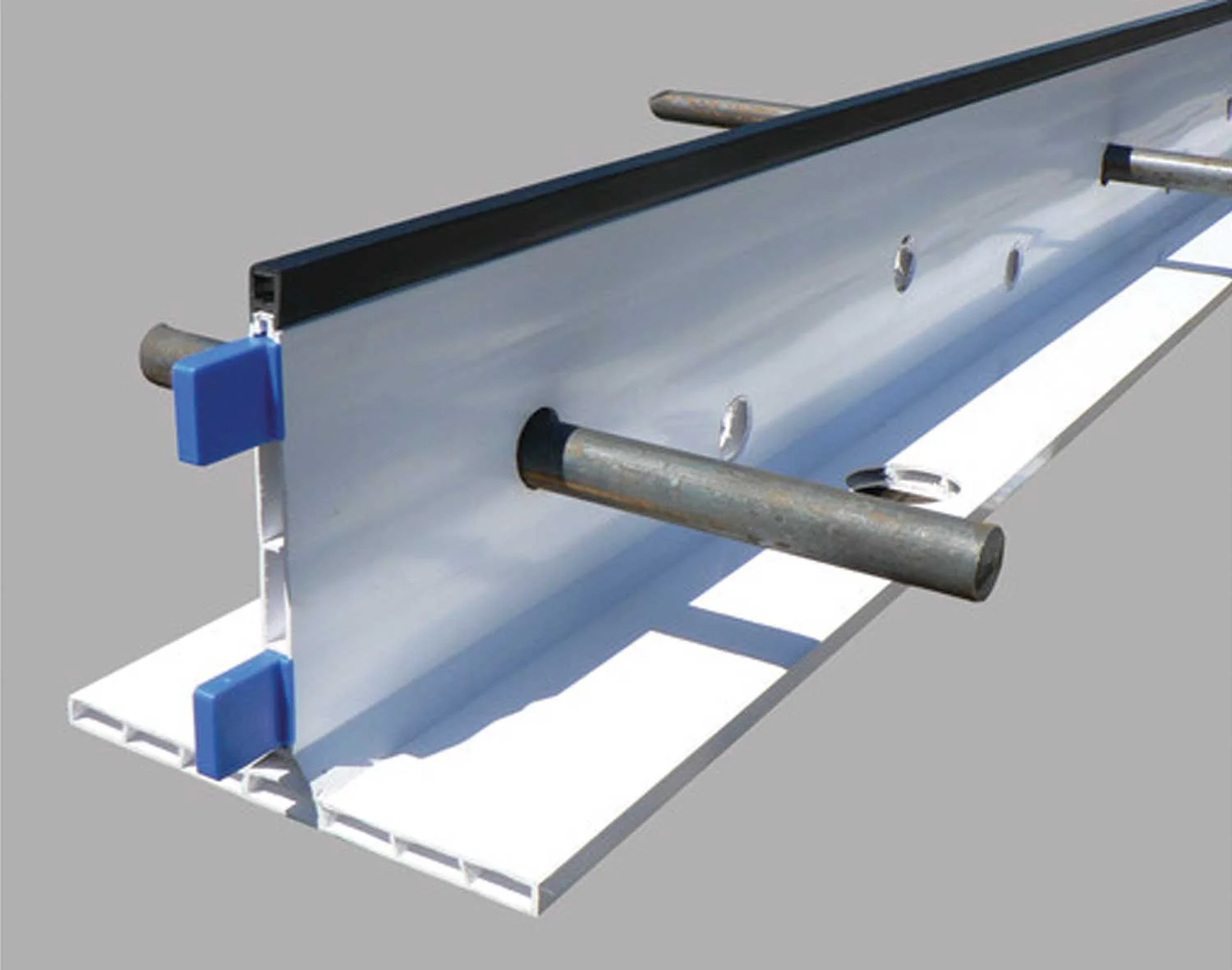

K-Form is made from uPVC. In simple terms it’s a lightweight cast in-place permanent screed rail that’s strong enough to handle all types of conventional mechanical screeds. It’s fast and easy to put in place. Plus it provides control, construction and isolation joints. In other words, you set up, pour and the K-Form simply stays in the ground.

The Ease of Using K-Form

K-Form Benefits:

  • Manufactured from lightweight, durable PVC

  • Integral expansion joint and void cap

  • Removable void cap/screed rail

  • Pre-drilled holes for dowel placement

  • Plate dowel option

  • Available in 2.8m lengths

  • Reduces production costs

  • No special tools required

  • One person can install

  • Can be used with most screed methods

  • Non-conductive

  • Reduces the need for saw cuts

  • No cleaning or removal, unlike traditional forming methods

  • Fuel, oil, and chemical resistant

  • Never rots or rusts

  • Pour more concrete per week

How to Simply Install KForm

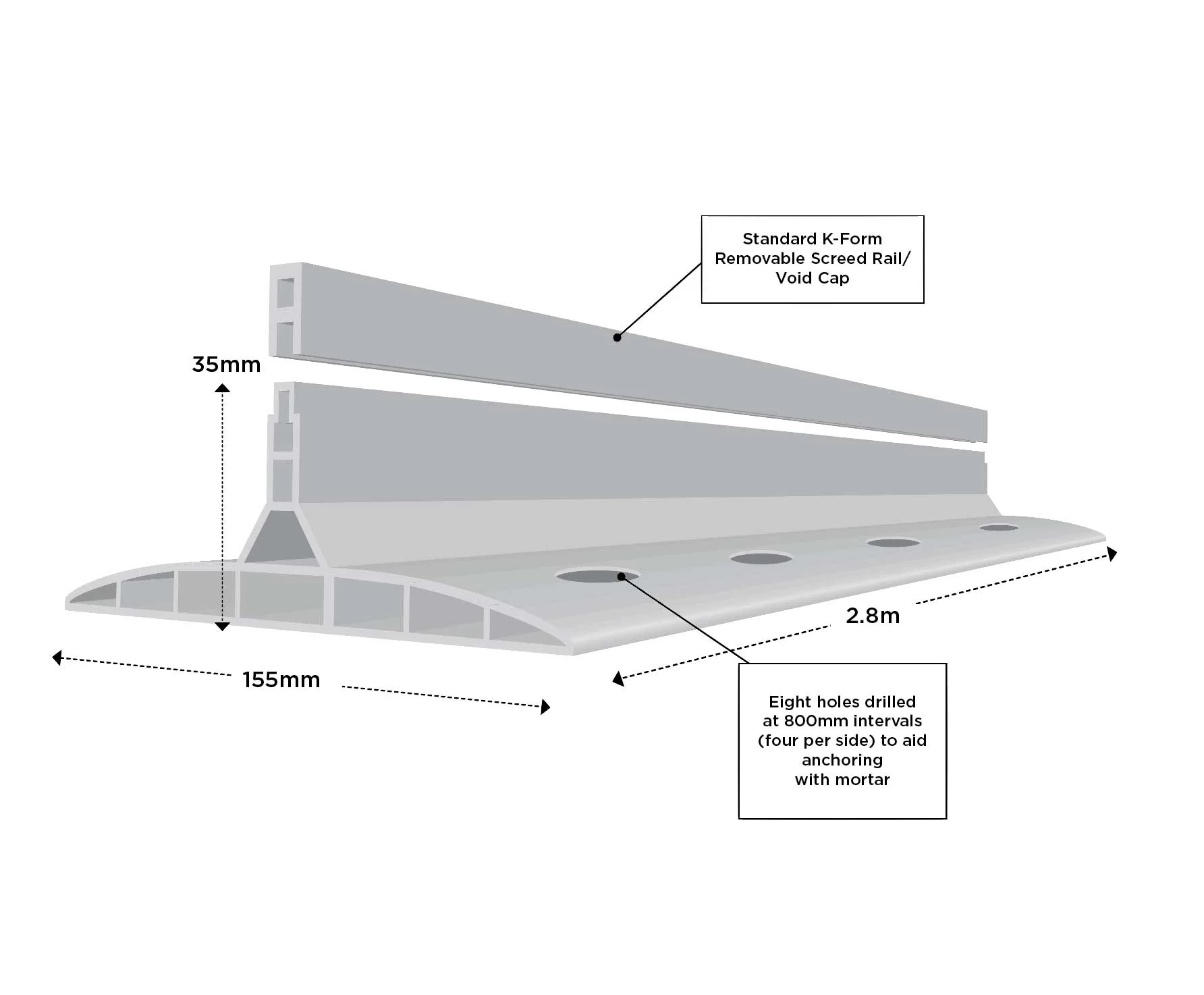

K35

DESIGNED FOR POURS OF 50 - 100MM CONCRETE SLABS



  1. Perfect for vertical multi-deck pours.

  2. Enables adjoining bays to be poured consecutively.

  3. Pre-drilled holes in base for anchoring with mortar.

  4. Fixing to steel deck possible with screws or shot nails.

  5. The profile is made of durable PVC, with a built-in expansion joint.

  6. Once concrete is poured, K-FORM is left in place; no need to remove and clean.

  7. Separate Void Cap can be removed once concrete is set to allow joint sealing.

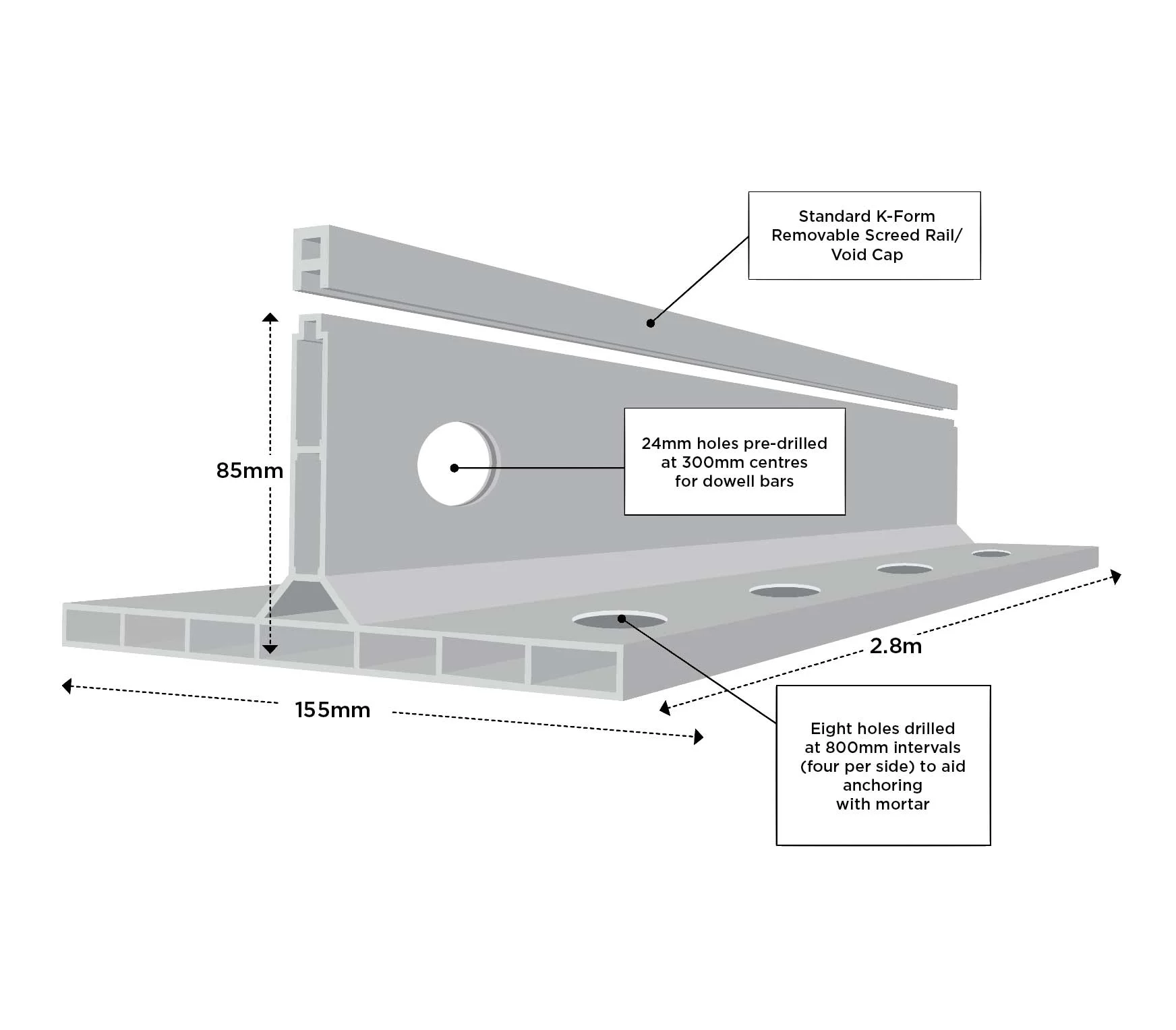

K85

DESIGNED FOR POURS OF 100 - 140MM CONCRETE SLABS

  1. Ideal for use with pervious concrete.

  2. Enables adjoining bays to be poured consecutively.

  3. Pre-drilled holes in base for anchoring with mortar.

  4. Pre-drilled holes in vertical face for locating dowel bars.

  5. The profile is made of durable PVC, with a built-in expansion joint.

  6. Once concrete is poured, K-FORM is left in place; no need to remove and clean.

  7. Separate Void Cap can be removed once concrete is set to allow joint sealing.

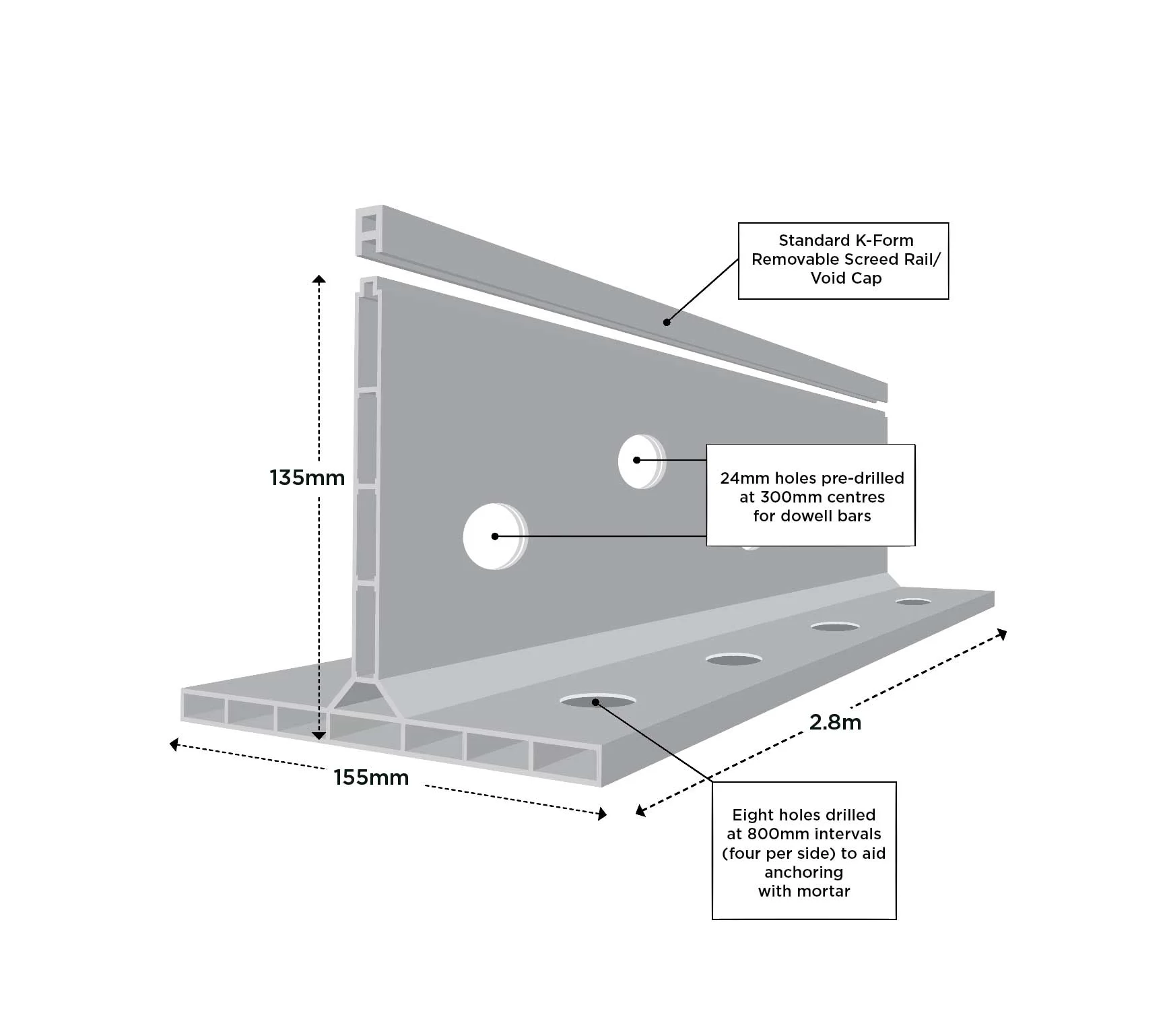

K135

RECOMMENDED FOR FORMING 150 - 225MM CONCRETE SLABS

  1. Ideal for use with pervious concrete.

  2. K135 plus 25mm riser recommended for forming 200 - 250mm concrete slabs. Enables adjoining bays to be poured consecutively.

  3. Pre-drilled holes in base for anchoring with mortar.

  4. Pre-drilled holes in vertical face for locating dowel bars.

  5. The profile is made of durable PVC and has a built-in expansion joint.

  6. Once concrete is poured, K-FORM is left in place; no need to remove and clean.

  7. Separate void cap can be removed once concrete is set to allow joint sealing.




Large Concrete Pour Case Study

Site Manager Testimonial using K-Form
